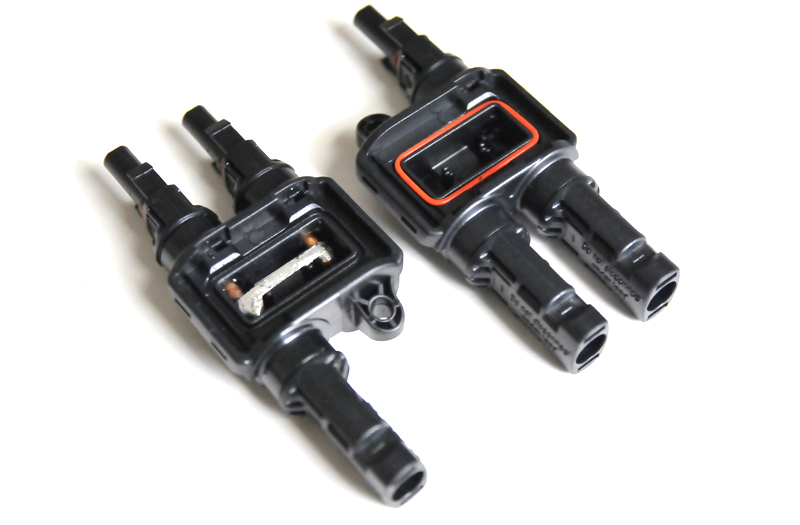

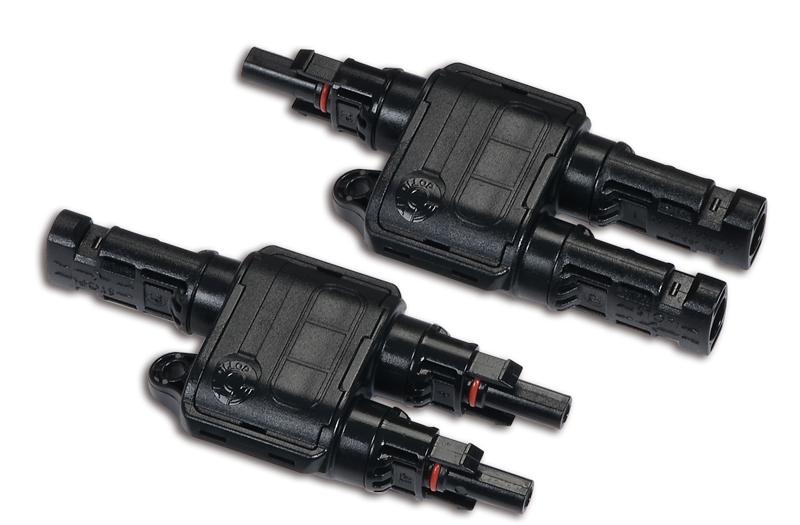

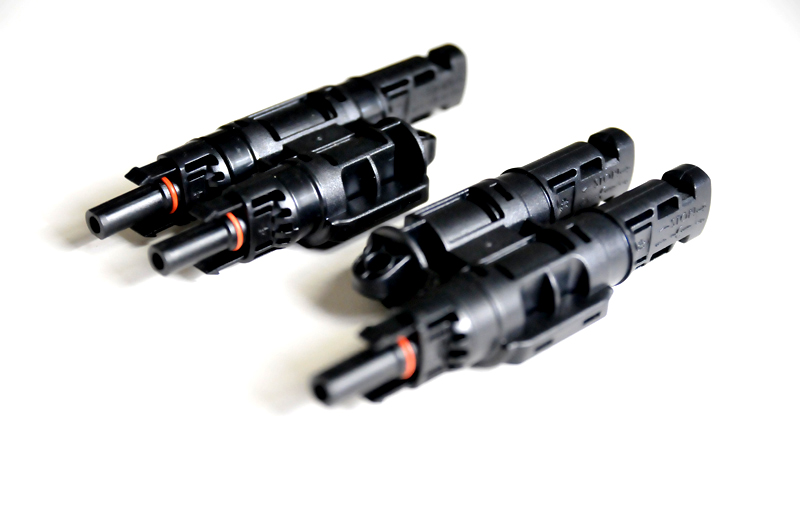

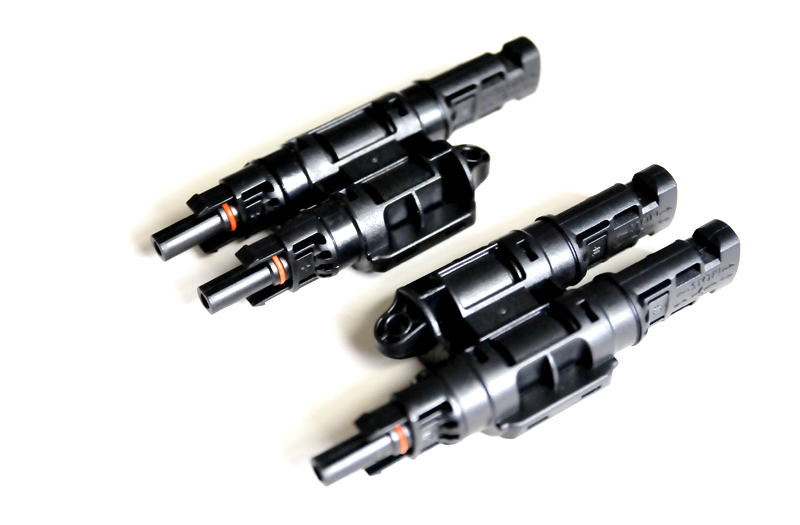

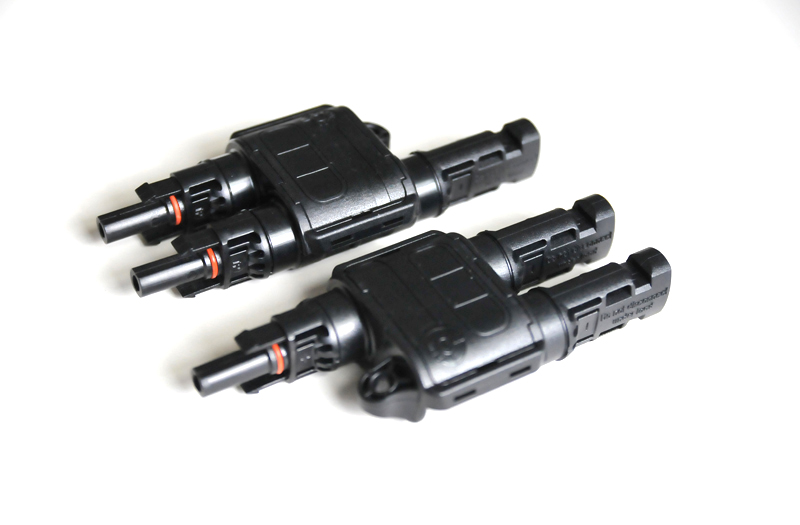

TPCB-8 Branch Connector for PV System Integration connecting
●
Optional with or without diode assembled.
●
Equipped installed hole for installation.
●
Switchable and variable connector interface and MC4
equivalent
●
Low contact resistance design, reduce power loss and temperature rising.
●
Protection degree: IP67
Specification Material
Box
Cover:PPO
Main body:PPO
Gasket:Silicone
Contact terminal:Tin plated copper alloy
Connector side
Main body:PPO
Contact terminal:Tin plated copper alloy
Environmental/Reliability
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP67
Electrical Specification
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 35A
Application class:Class A
Overvoltage category:8 kV
Rated impulse voltage:III
Certification:TÜV Rheinland EN50521:2008/05, applied
UL 6703, applied
Others
Contact method:Snap-in
TPCB-8-2F:x2 Female connectors + x1 Male connector
TPCB-8-2M:x2 Male connectors + x1 Female connector
