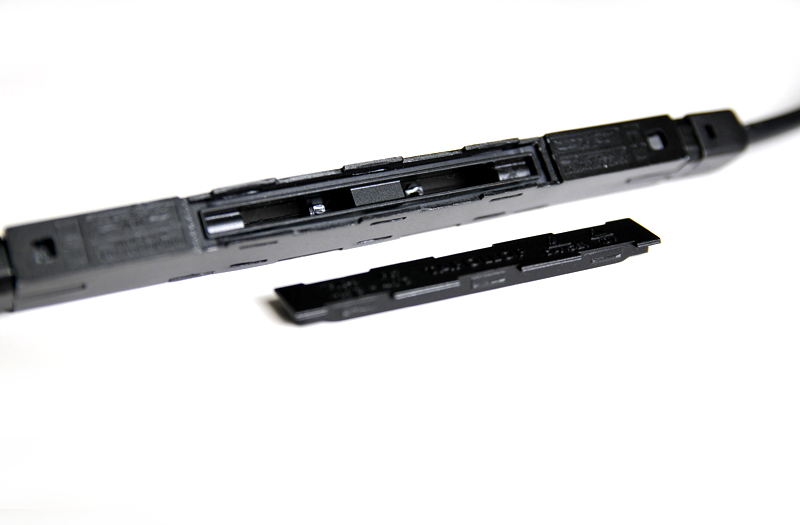

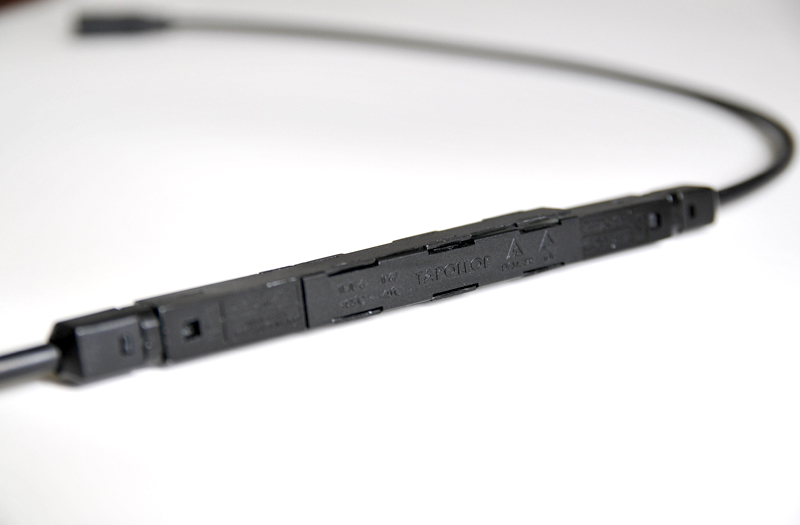

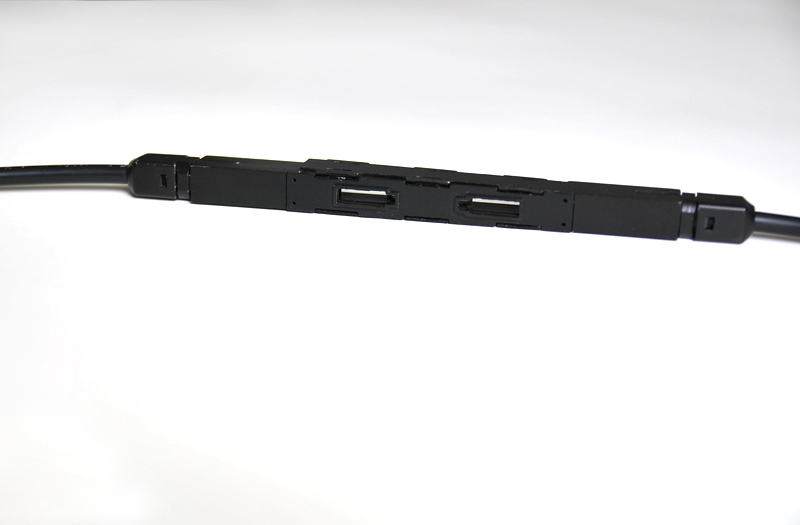

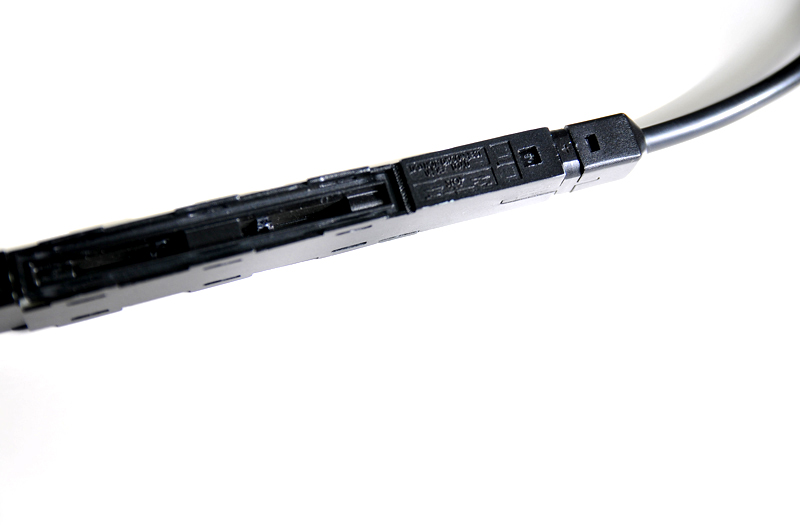

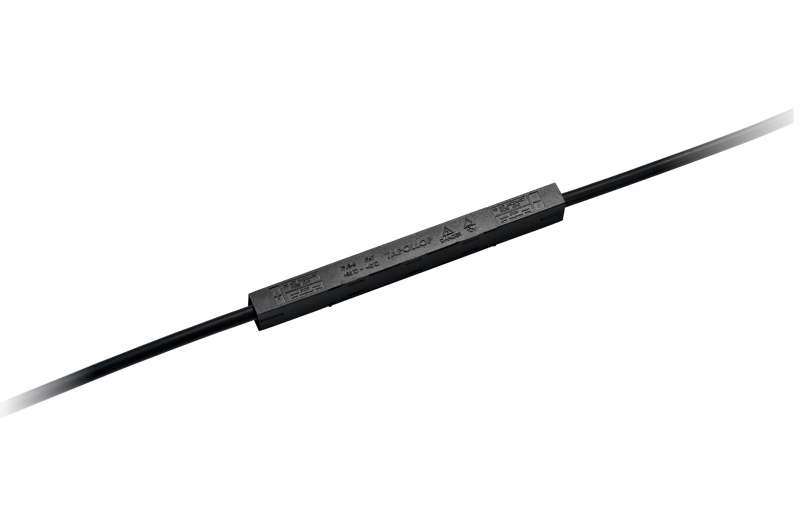

TPJB-6 Pen Type Junction Box for BIPV Module
●
Suitable shape designed and featured for building structure beauty.
●
Rated currents are optional according to module specification.
●
Patented design for mounting and installation
●
Protection degree: IP65/67 with potting
Specification Material
Box
Cover:PPO
Main body:PPO
Gasket:Silicone
Contact terminal:Tin plated copper alloy, stainless steel
Gland nuts:PA66-GF
Gland sealing:TPV
Mounting material:Silicone glue

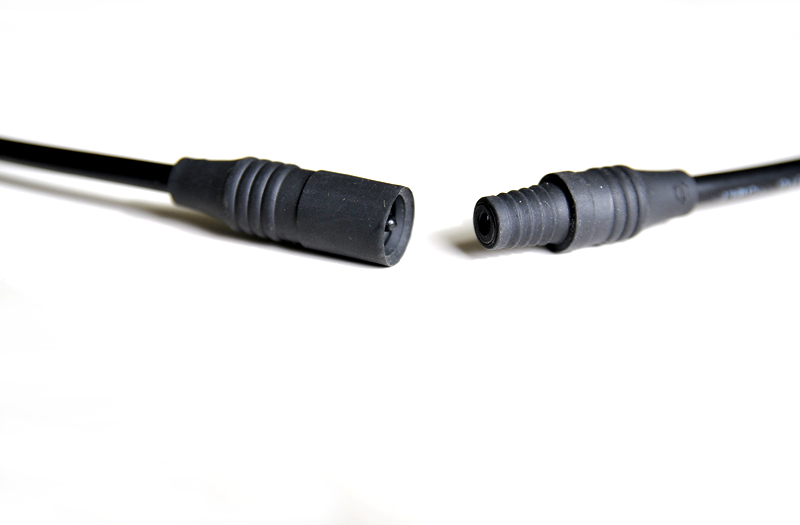

Connector (TPCB series)
Main body:PPO
Gland nuts:PA66-GF
Gland sealing:TPV,Silicone
Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP65 with potting IP67
Connector (TPCB series)
Operating temp. range:-40°C to +85°C
Upper limit temp.:+125°C
Pollution degree:3
Degree of protection:IP67/IP68
Electrical Specification
Box
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 10A with potting 11A
Application class:Class A
Overvoltage category:III
Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, applied
UL 1703, applied
Connector (TPCB series)
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
Application class:Class A
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN50521:2008/11, R50159695
UL 1703, E344920
Others
Model type of box:TPJB-6-X
Model type of connector:TPCB series
Number of diodes:0, x1
Number of terminals:x2
Ribbon contact method:spring contact
Diode:Diotec SB 1240, BY550-1000
Max. ribbon width:5mm
Max. ribbon thickness:0.25mm
Cable:LEONI Studer AG®BETAflam® 125-flex SOLAR FRNC x 2.5m㎡
Cable assembly left:TPCB series-F (Anode”+”)
Cable length left (L1):60cm±10cm, option
Cable assembly right:TPCB series-M (Cathode”-”)
Cable length left (L2):60cm±10cm, option
