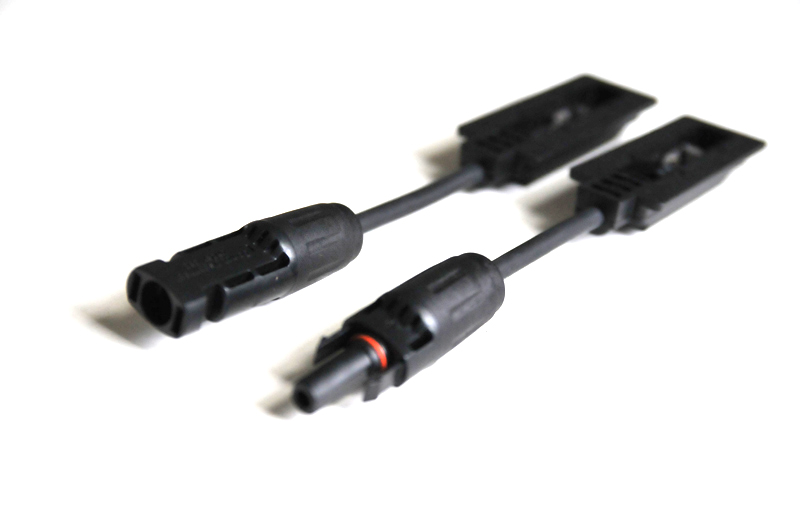

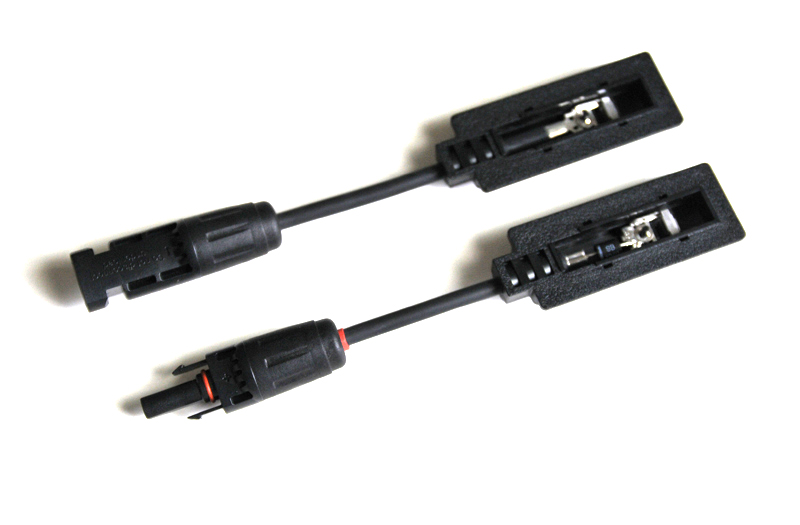

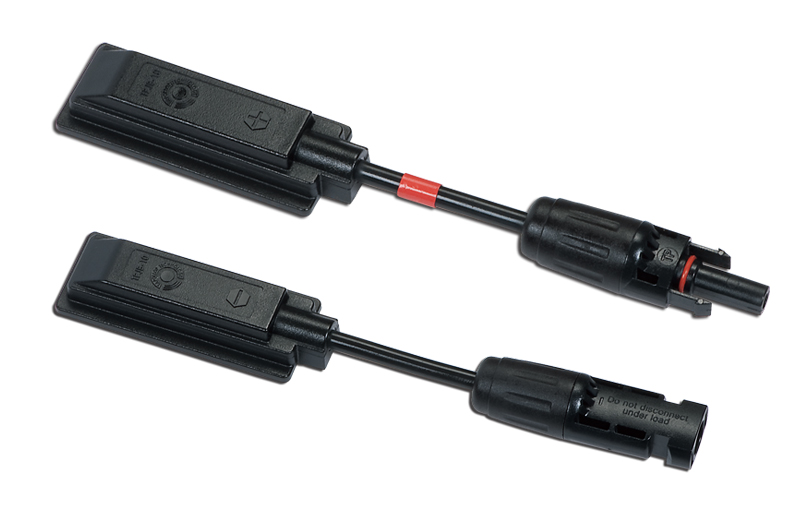

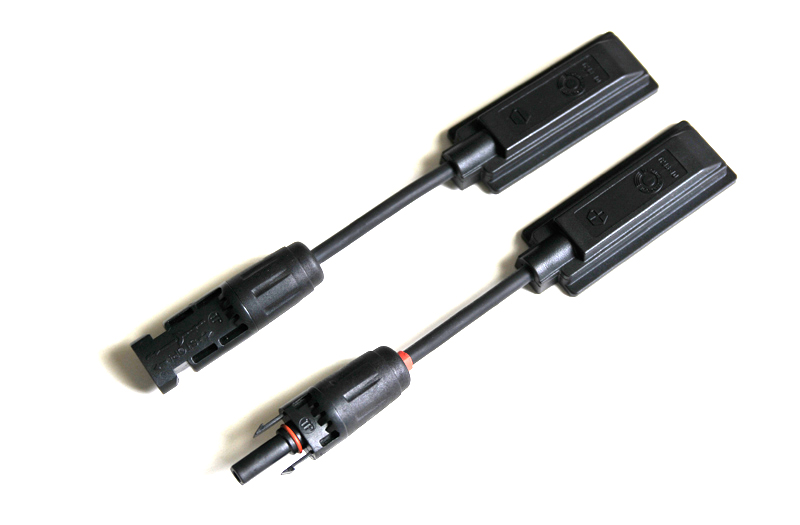

TPJB-10 Edge Type / Mono-pole Junction Box for PV Module
●
Suitable shape designed and featured for building structure beauty.
●
Optional with or without diode assembled.
●
Mono pole design for variable installation.
●
Patented ribbon/terminal contact method, easy for installation.
Specification Material
Box
Main body:PPO
Contact terminal:Tin plated copper alloy, stainless steel
Gland nuts:PA66-GF
Gland sealing:TPV
Mounting material:Silicone glue, Double side adhesive type

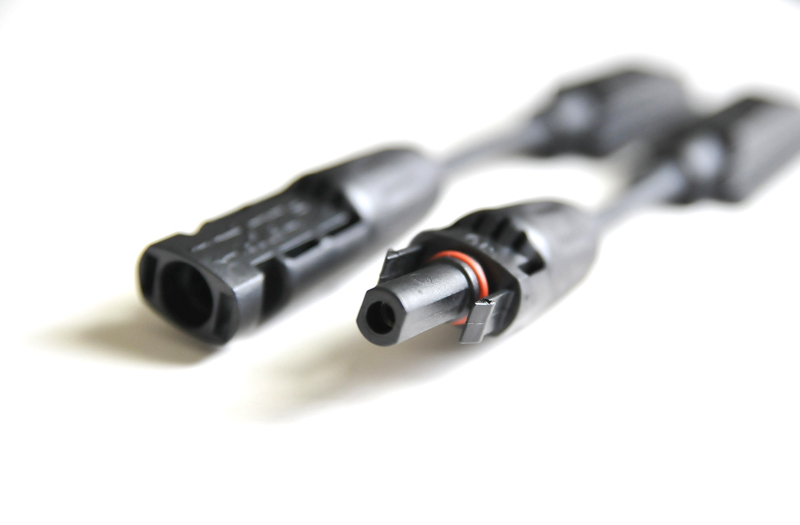

Connector (TPCB series)
Main body:PPO
Gland nuts:PA66-GF
Gland sealing:TPV
Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP65
Connector (TPCB series)
Operating temp. range:-40°C to +85°C
Upper limit temp.:+125°C
Pollution degree:3
Degree of protection:IP67/IP68
Electrical Specification
Box
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A
Application class:Class A
Overvoltage category:III
Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05, applied
UL 3730, applied
Connector (TPCB series)
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
Application class:Class A
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN50521:2008/11, R50159695
UL 6703, E344920
Others
Model type of box:TPJB-10-X
Model type of connector:TPCB series
Number of diodes:0, 1
Number of terminals:2/pair

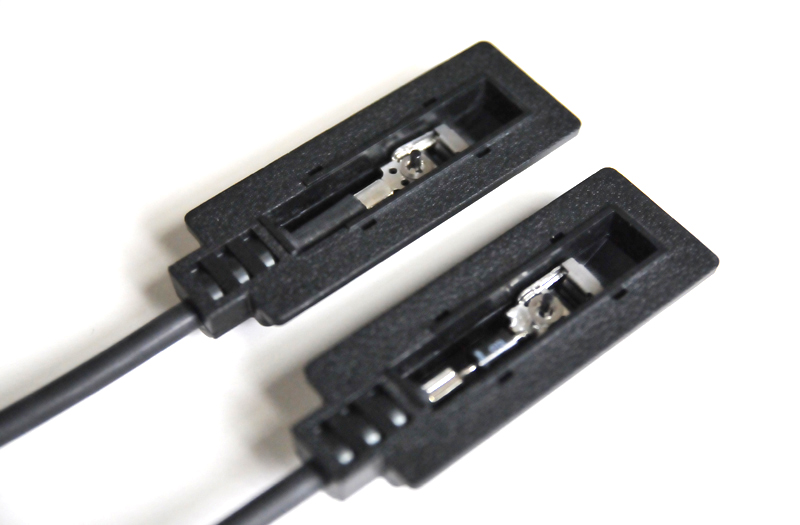

Ribbon contact method:spring contact, soldering
Max. ribbon width:6mm
Max. ribbon thickness:0.3mm
Cable:LEONI Studer AG
Box assembly anode:TPCB series-F (Anode”+”)
Cable length anode:50cm±10cm, option
Box assembly cathode:TPCB series-M (Cathode”-”)
Cable length cathode:50cm±10cm, option
