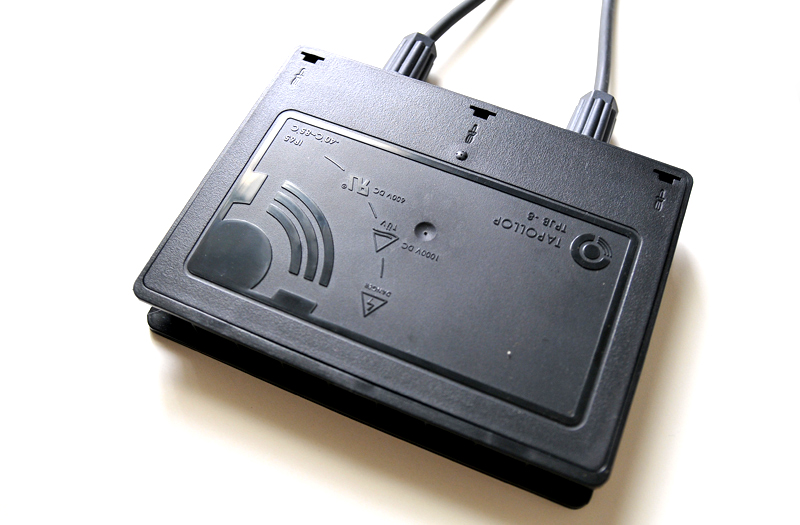

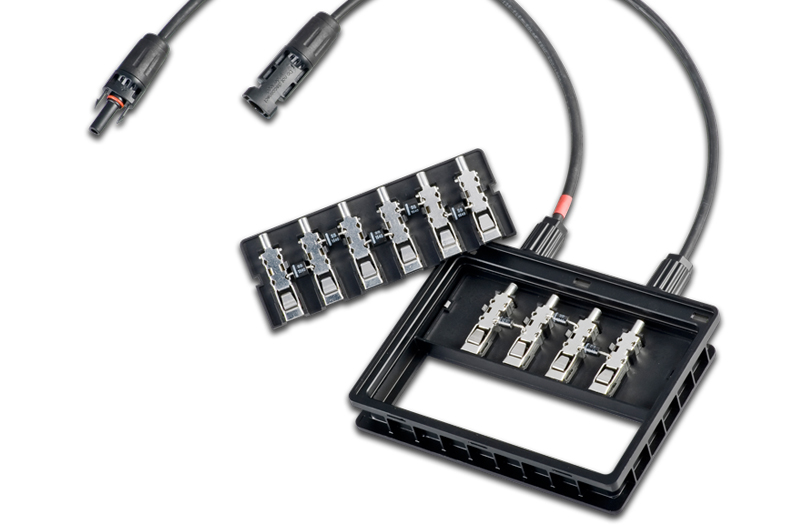

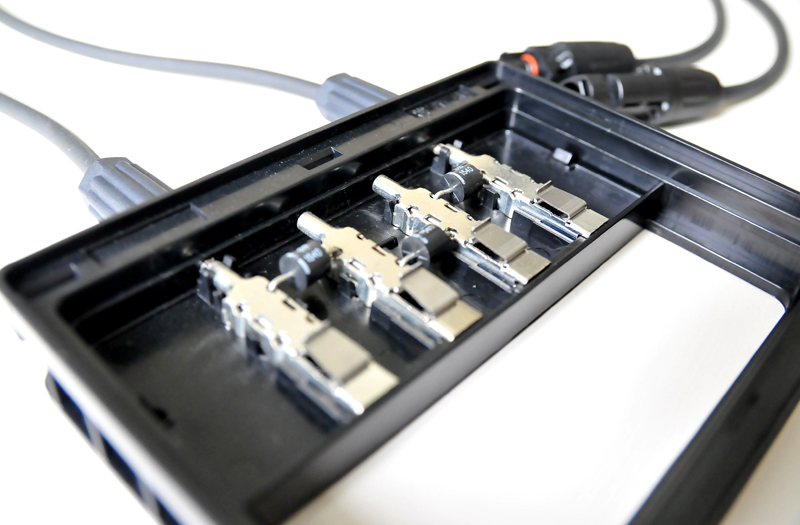

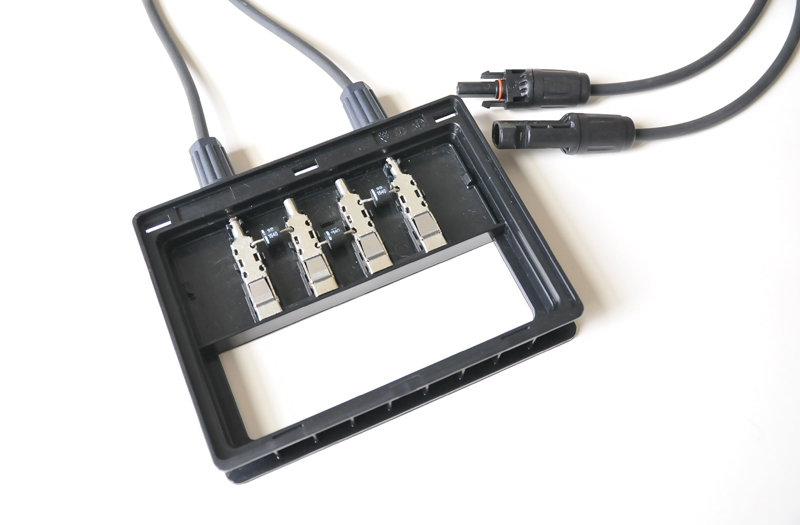

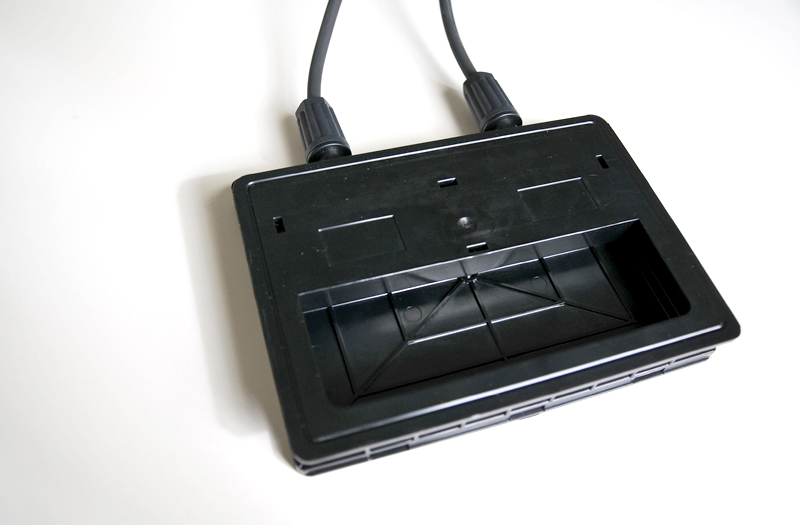

TPJB-8     Junction Box for High Current Silicon Base PV Module

●        High rated current for future PV module developments
●        Low contact resistance design, reduce power loss and temperature rising.
●        Switchable terminal numbers from 2 to 6.
●        Patented ribbon/terminal contact method, easy for installation.
●        Anti-aging and anti-ultraviolet function with IP65 protection degree.
●       Enhanced heat dissipation design and material.
Specification Material
Box
Cover:PPO
Main body:PPO
Gasket:Silicone
Contact terminal:Tin plated copper alloy, stainless steel
Gland nuts:PA66-GF
Gland sealing:TPV,Silicone
Mounting material:Silicone glue

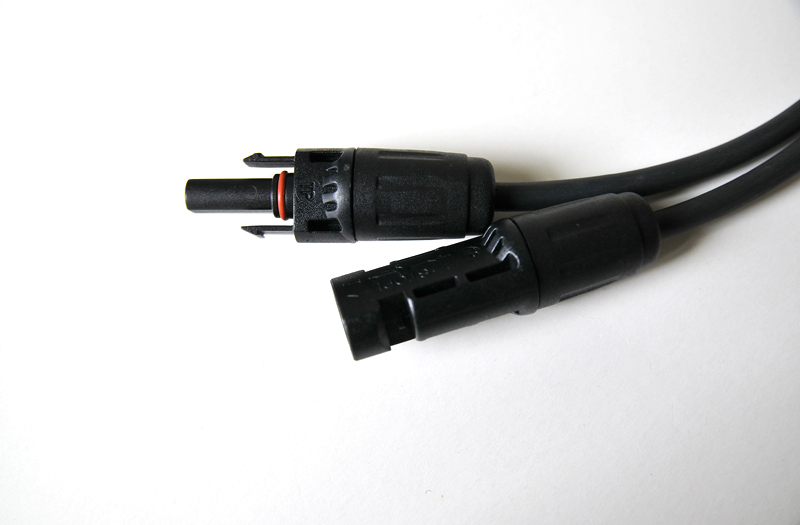

Connector (TPCB series)
Main body:PPO
Gland nuts:PA66-GF
Gland sealing:TPV,Silicone
Contact terminal:Tin plated copper alloy
Environmental/Reliability
Box
Operating temp. range:-40°C to +85°C
Upper limit temp.:+105°C
Pollution degree:3
Degree of protection:IP65
Connector (TPCB series)
Operating temp. range:-40°C to +85°C
Upper limit temp.:+125°C
Pollution degree:3
Degree of protection:IP67/IP68

Electrical Specification
Box
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 13A
Application class:Class A
Overvoltage category:III
Certification:TÜV Rheinland DIN V VDE V 0126-5:2008/05,R50205919 UL 3730 E326729
Connector (TPCB series)
Rated voltage:1000V VDC/TÜV, 600V VDC/UL
Rated current:Up to 25A @2.5 & 4.0 m㎡
Application class:Class A
Rated impulse voltage:8 kV
Certification:TÜV Rheinland EN50521:2008/11,R50159695
UL 6703, E344920
Others
Model type of box:TPJB-8-X
Model type of connector:TPCB series
Number of diodes:x3, x5
Number of terminals:x4, x6
Ribbon contact method:spring contact, soldering
Diode:Diotec SBX 3040, GSBR 3040
Max. ribbon width:8mm
Max. ribbon thickness:0.5mm
Cable:(1) LEONI Studer AG (2) Baohing PV wire
Cable assembly left:TPCB series-F (Anode”+”)
Cable length left (L1):100cm±10cm, option
Cable assembly right:TPCB series-M (Cathode”-”)
Cable length left (L2):100cm±10cm, option
