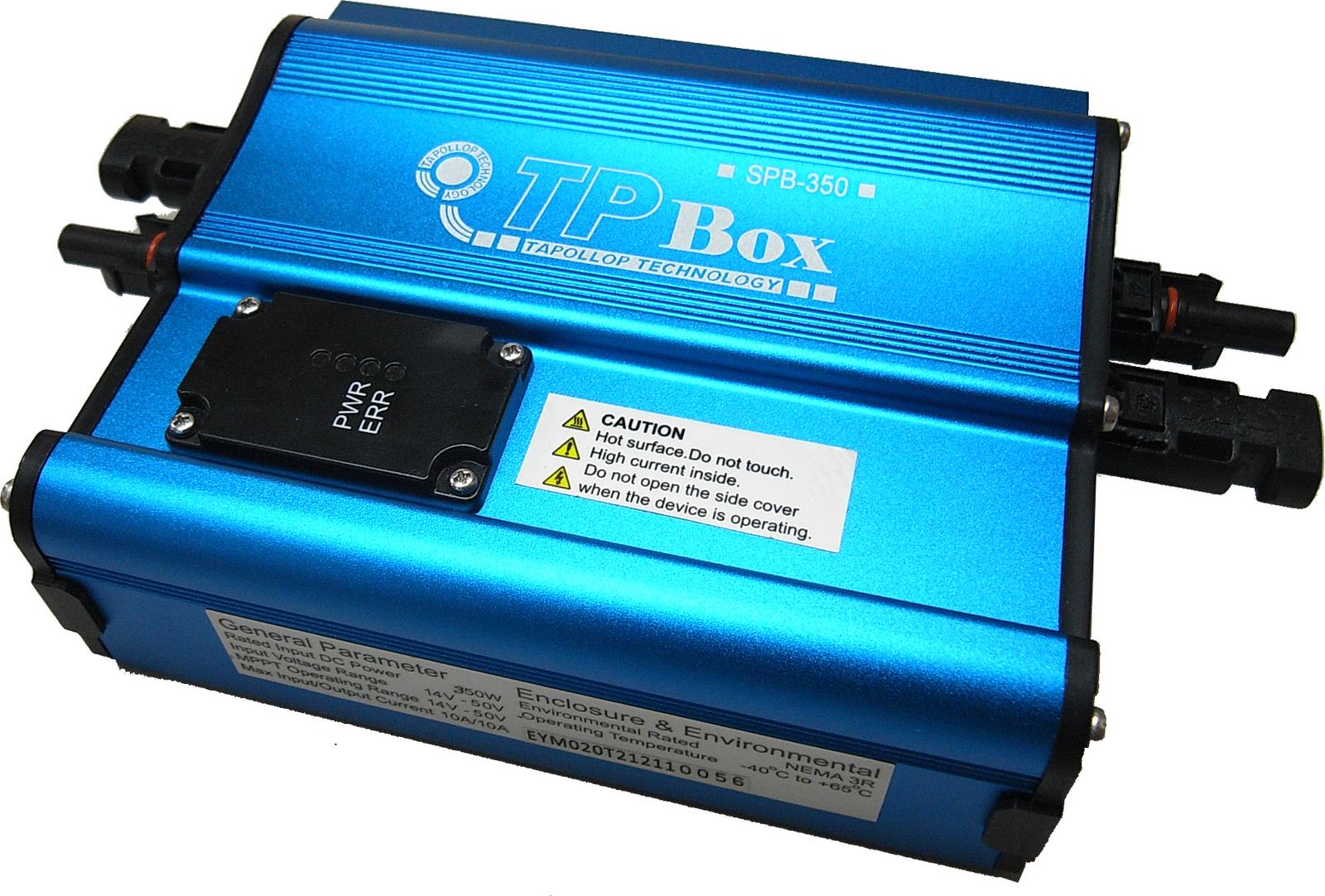

SPB-G1-350 Smart Power Box
●
Optimize the power output of PV integration systems
●
Extend power generating of PV integration systems
●
Reduce power loss in mismatch or shading condition
●
Increase return on investment, R.O.I., of PV integration systems
General Parameter
MaximumInputVoltage:50 Vdc
MPPTOperatingRange:14~50 Vdc
MaximumInputCurrent:10 Adc
RatedInputDCPower:350 W
MaximumEffciency:97.7%
Enclosure & Environmental
Weight:0.78kg
Dimensions [ L*W*D]:220*125*55 mm
Protection class:IP67 Outdoor Use
Operating temperature:-40~65℃
Humidity:0~100 %
Cooling:Natural Convection

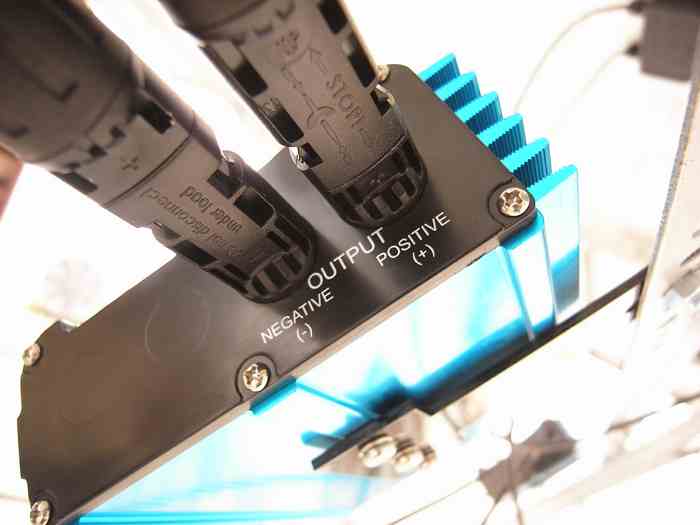

OUTPUT
MaximumOutputCurrent:10 Adc
OperatingOutputVoltage:14~60 Vdc
Function & Feature
Maximum power point tracker:Yes
RF communication:optional
